Getting started with Litter-Robot 4

Your Litter-Robot 4 ships fully assembled. Follow these steps to get started or refer to the user manual for more information.

What's in the box

Litter-Robot 4

Litter-Robot 4

15 Volt DC Power Supply

1 Carbon Filter

3 Waste Drawer Liners

Fence

Most Accessories (optional – sold separately or in bundle)

Ensure proper placement

Your Litter-Robot comes fully assembled and ready to use. Get started by following the steps below.

  1. If possible, place Litter-Robot in the same location as the old litter box (at least during transition).
  2. Make sure the unit is on a firm, level surface in a cool, dry location.
  3. Locate the unit near a power outlet. Ensure the unit isn’t pushed against a wall or into a corner.
  4. Place litter mats or rugs in front of the unit.

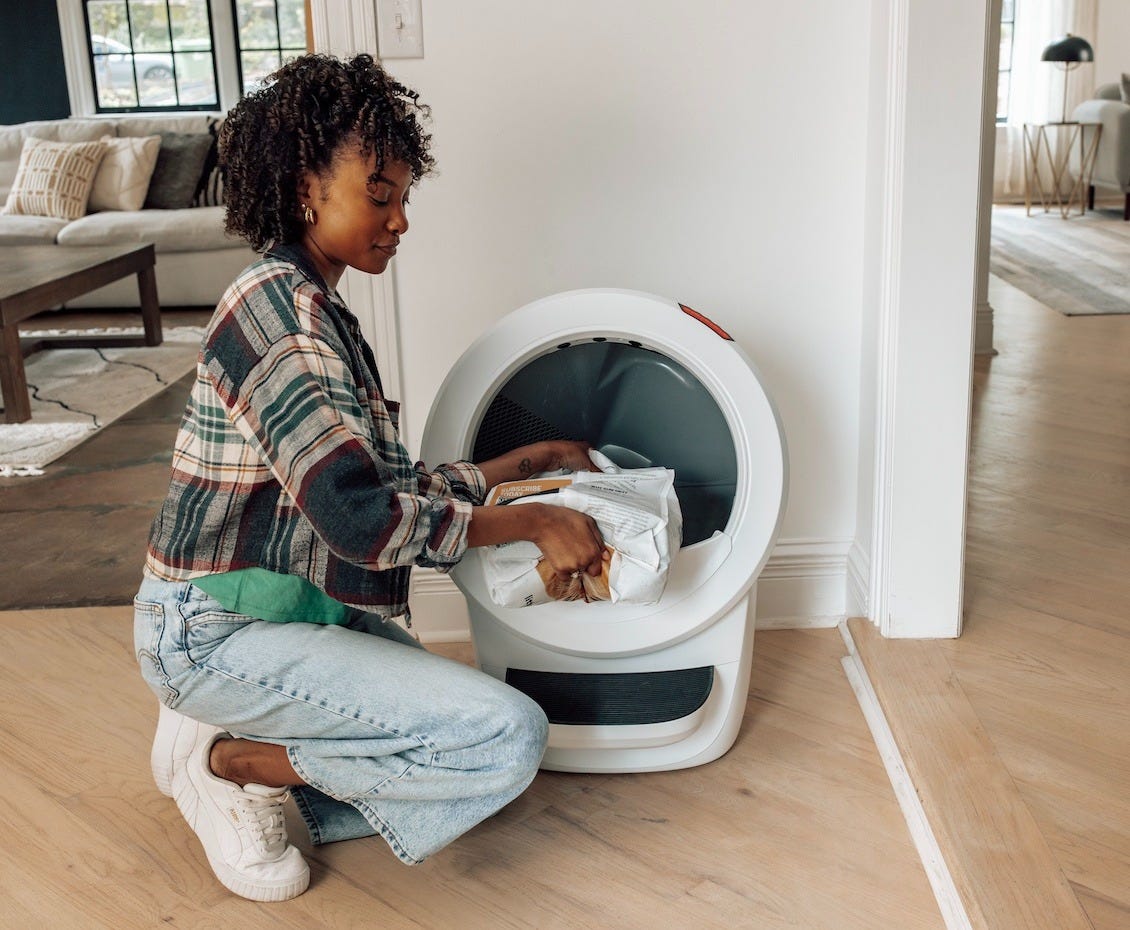

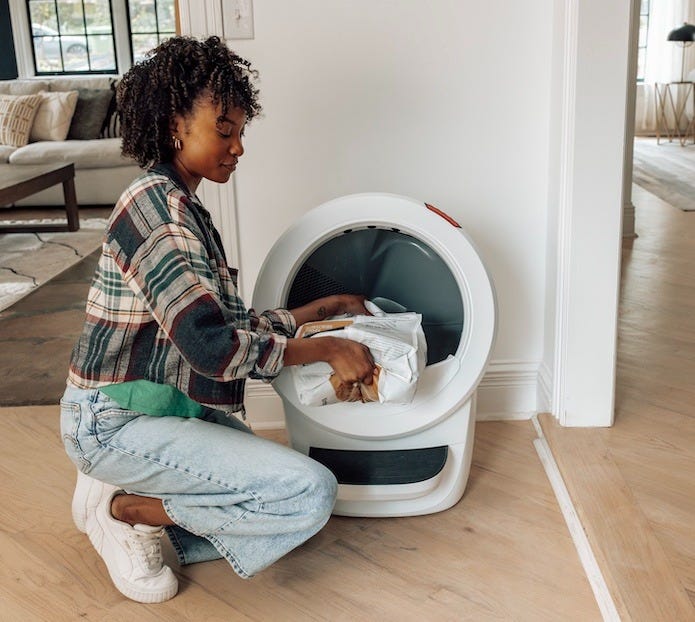

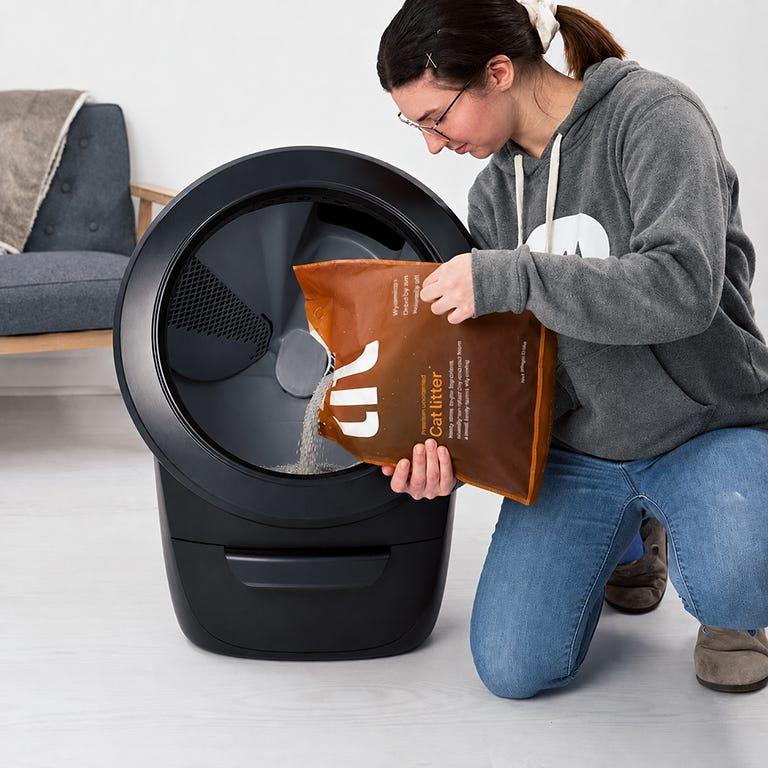

Add litter

Add clumping litter

Litter-Robot’s litter sifting system requires clumping litter. Litter beads and crystals that are small enough to pass through the screen will also work.

What not to use

DO NOT use litters that are strictly absorbent, non-clumping, loose-clumping, newspaper-based, or wood-based pellets.

Don’t overfill

Fill the globe through the opening until litter meets the raised fill line when spread flat (about 8-10 lbs by weight or 1 gal by volume). Be careful not to overfill the globe.

Power on and initial clean cycle

Plug it in

Plug the small end of the power supply into the socket on the back of the base. Then plug the AC/DC adapter into a wall outlet.

Initial clean cycle

Press the Power button on the control panel. Litter-Robot will perform an initial clean cycle that will last 2 minutes. (Note: During the initial clean cycle, the cat sensor weight scale is disabled to ensure proper calibration.)

Onboarding the app

Download the Whisker app

Download the Whisker app and follow the onboarding instructions.

Screens may vary as app gets updated.

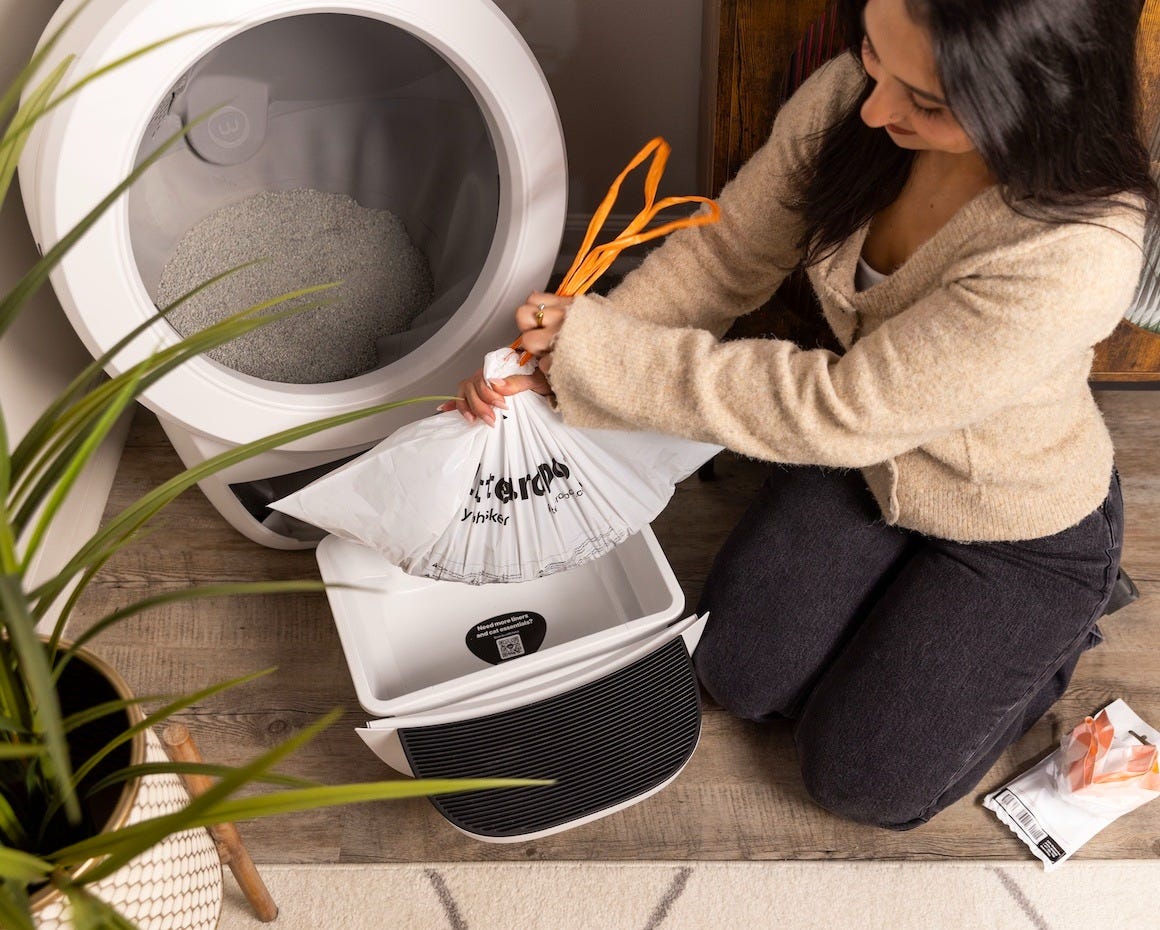

Empty the waste drawer when indicated

Empty the waste drawer when indicated by the app or the flashing blue light on the control panel. How often you empty the waste drawer depends on the number and size of your cats. For two average-sized cats, twice per week is typical. For a single cat, once per week is usually sufficient.

To empty the waste drawer, simply pull out the waste drawer, gather the edges of the liner bag, and dispose. To install a new liner or trash bag, wrap the opening over the perimeter of the waste drawer. Push the remainder of the bag into the bottom of the waste drawer.

Add litter as needed

How often you add litter depends on how many cats use Litter-Robot and how frequently they use it. Litter-Robot uses litter very efficiently since the patented sifting mechanism only removes the clumps. We recommend checking the litter level each time you empty the waste drawer. If the litter is below the raised MAX fill line inside the globe, add just enough litter to meet the line.

Control panel buttons

Power

  • Press and release the Power button to turn the robot ON or OFF.
  • The robot will begin a clean cycle when power is turned on.

Reset

  • Press and release the Reset button to zero the weight scale. (Do this after emptying the waste drawer, adding litter, etc.)
  • Press and hold, while at the home position, to enter night light setting mode.

Connect

  • Press and release the Connect button to turn the WiFi ON or OFF.
  • Press and hold, while at the home position, to initiate the onboarding process.

Cycle

  • Press and release the Cycle button to start a clean cycle.
  • Press and hold, while at the home position, to enter sleep mode.

Empty

  • Press and release the Empty button to start an empty cycle (empties all litter into the waste drawer).
  • Press and hold, while at the home position, to enter wait time setting mode.

Indicator lights

Solid blue

Robot ready and connected.

Flashing blue

Waste drawer full.

Solid blue

WiFi flashing yellow

Robot in WiFi onboarding mode.

Solid yellow

Robot paused during cycle.

Round robin yellow*

Robot cycling.
*Yellow light moving with the rotation of the globe.

Solid red

Cat detected and wait time countdown initiated.

Solid purple

Sleep mode enabled, within specified sleep time.

Installing accessories

Litter-Robot 4 Step

Learn how to install the Litter-Robot 4 Step with our Step Installation Guide.

Litter-Robot 4 Carbon Filter

Learn how to install the Litter-Robot 4 Carbon Filter with our Carbon Filter Installation Guide.

Litter-Robot 4 Waste Drawer Liner

Learn how to install the Litter-Robot 4 Waste Drawer Liner with our Waste Drawer Liner Installation Guide.

Litter-Robot 4 OdorTrap™ Packs

Learn how to install Litter-Robot 4 OdorTrap™​​ Packs with our OdorTrap™ Pack Installation Guide.

Litter-Robot 4 Fence

Learn how to install Litter-Robot 4 Fence with our Fence Installation Guide.

Enjoy a life of no scooping

Need help getting started? Contact Whisker Support.
