Litter-Robot EVO: Ramp installation guide

The Litter-Robot EVO provides easier access for your cat and helps reduce litter tracking. Follow the steps below to assemble and install your ramp.

Quick links

Before you start

Parts required

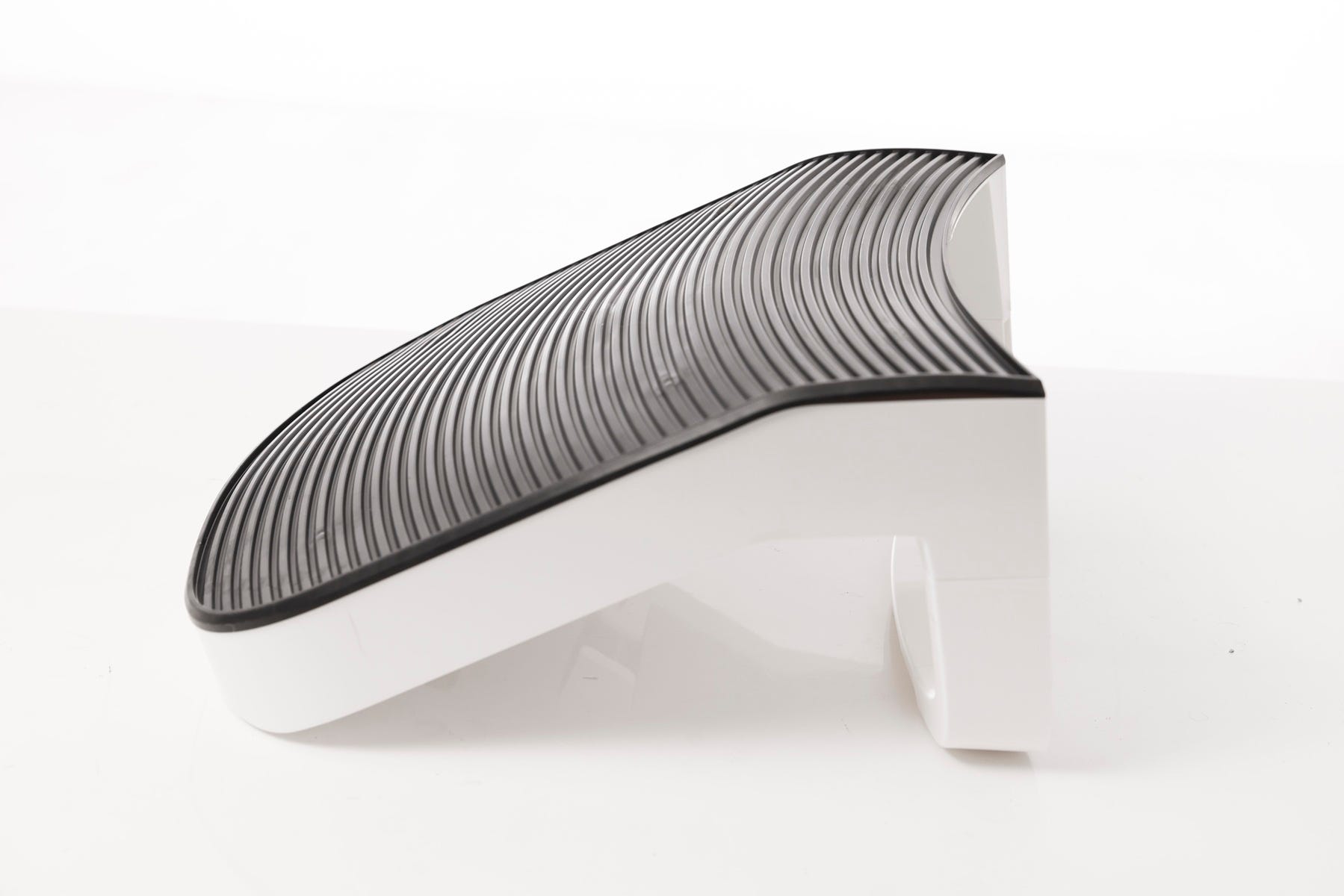

• Ramp
• Ramp stand

Note: There’s no need to remove existing accessories on your Litter-Robot EVO. Both the fence and original step can remain installed when using the ramp.

Assembling the ramp

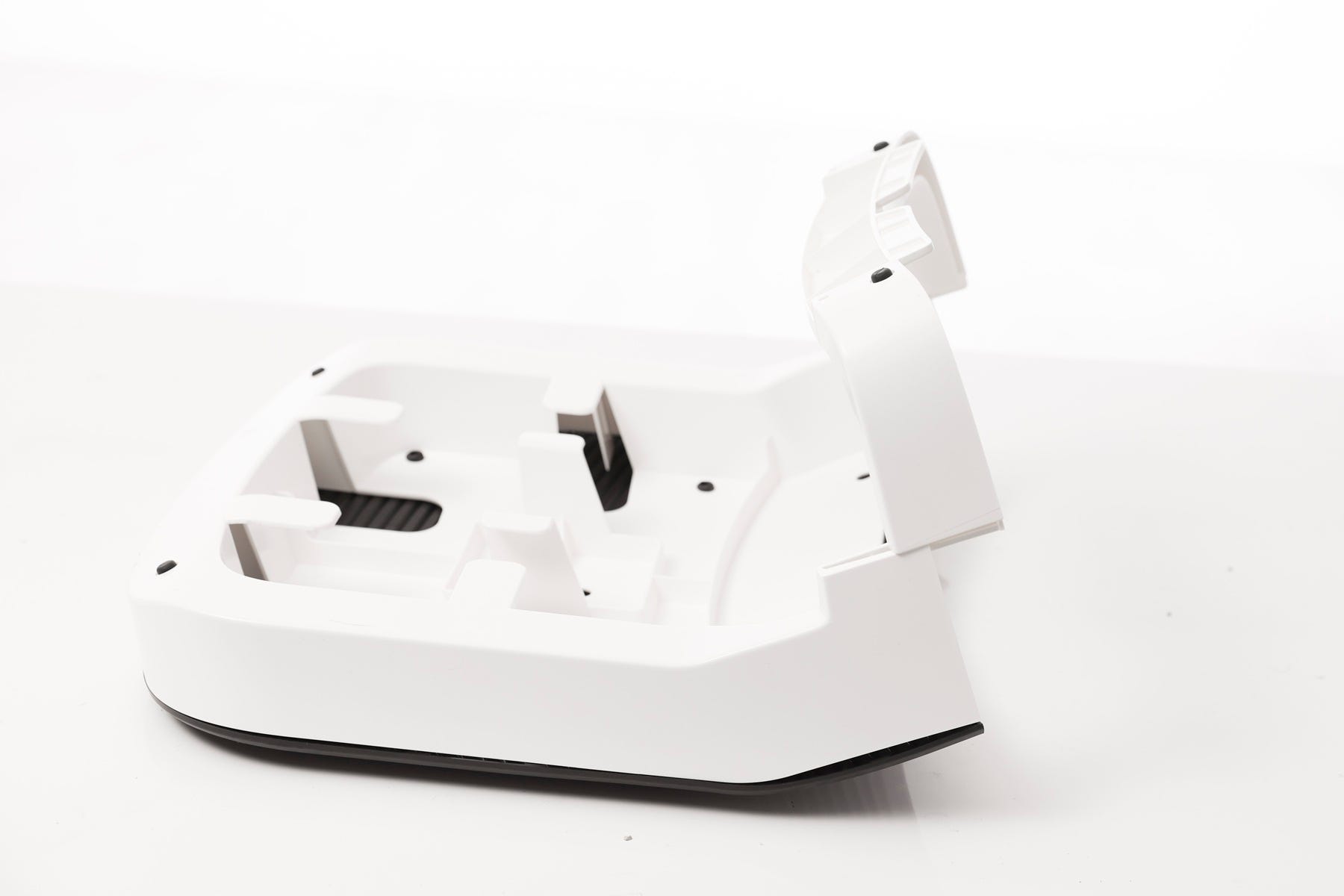

1. Flip the ramp over and slide the ramp stand into the designated slots until it clicks securely into place.

Attaching the ramp

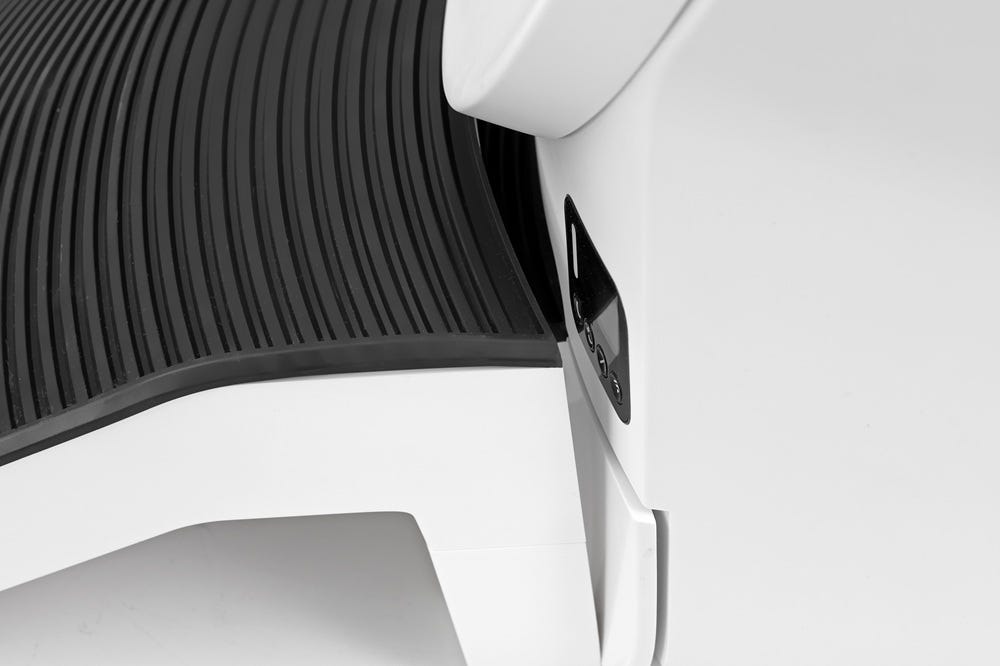

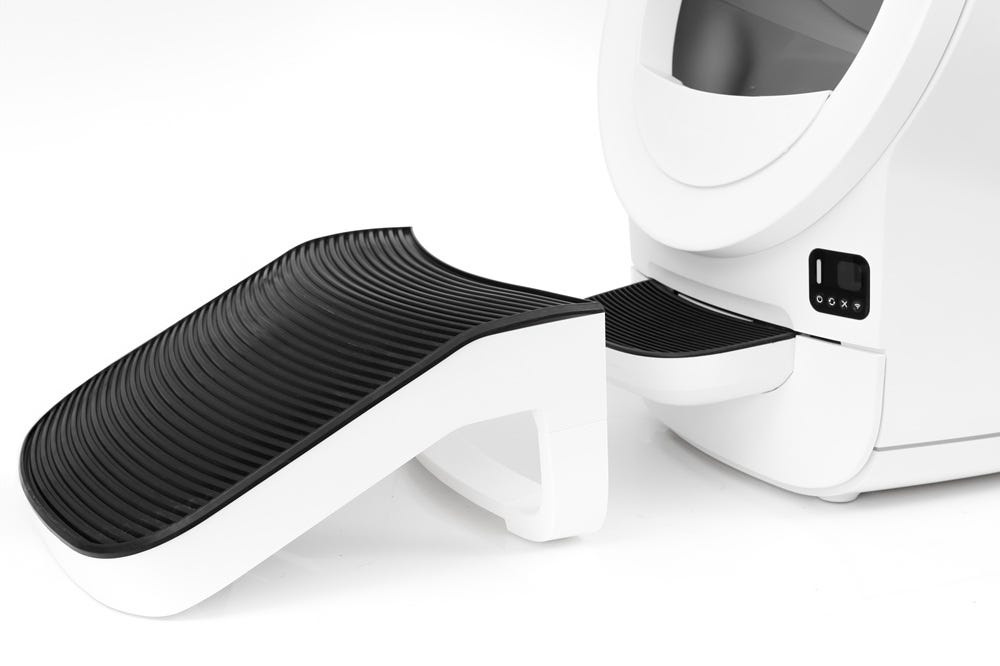

2. Slide the ramp onto the Litter-Robot EVO by guiding it over the step until the bottom bumpers rest against the base of the robot.

Final step

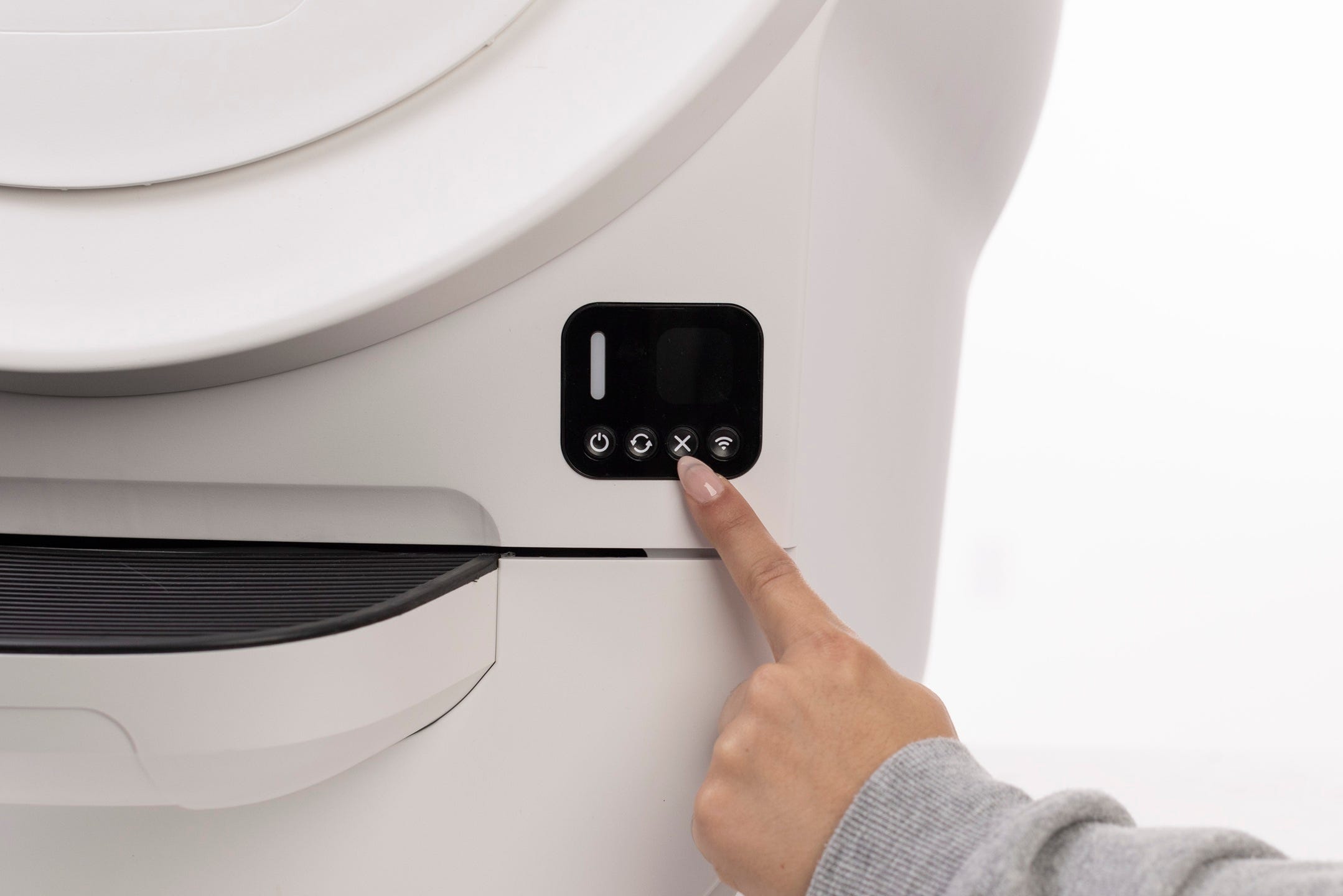

3. Short press the  Cancel button to zero the weight sensors.

Successful installation:

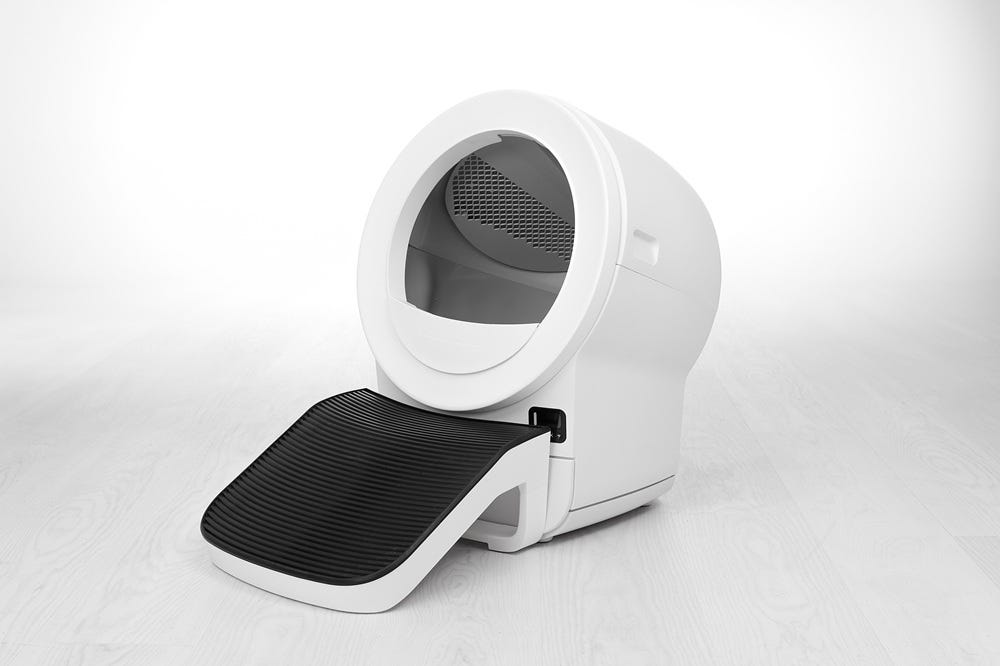

The ramp should sit securely with the bumpers touching the base and the stand stable on the floor. The unit should display a solid white light once the sensors are zeroed.

Disassembling the ramp

Remove the ramp

1. Slightly lift the front of the ramp. Pull the ramp away from the unit.

Remove the ramp stand from the ramp

2. Flip the ramp over so the stand is closest to you and push the legs of the stand forward. Continue pressing until the stand clicks free from the ramp.
